Alto-Shaam AR-7EVH-SGLPANE Rotisserie Ovens
Alto-Shaam AR-7EVH-SGLPANE Rotisserie Ovens
Details

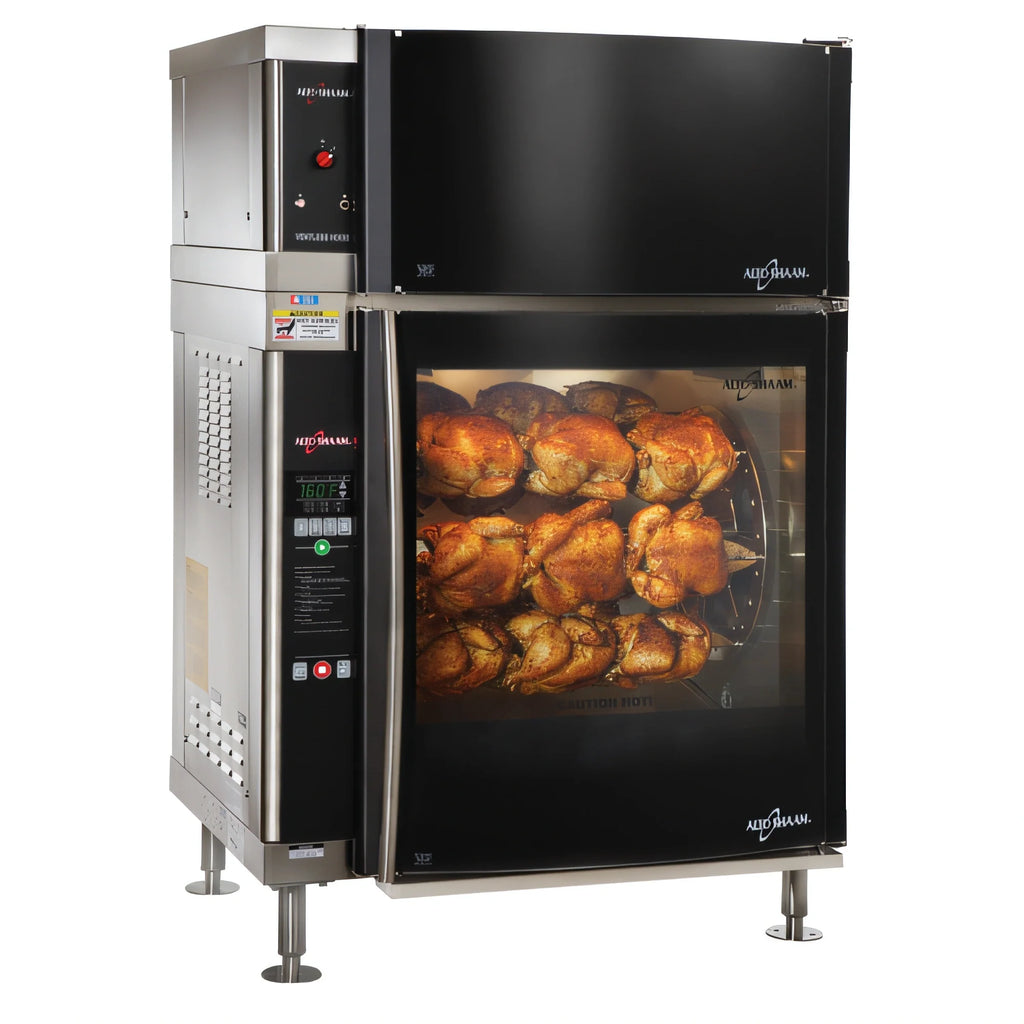

Alto-Shaam AR-7EVH EcoSmart® Ventless Electric Rotisserie Oven
Single-Pane Flat Glass Door • 7 Stainless-Steel Spits • 21–28 Chicken CapacityProduce succulent, evenly roasted poultry and proteins anywhere—without the cost and complication of a dedicated exhaust hood. The Alto-Shaam AR-7EVH couples a built-in ventless filtration system with energy-saving EcoSmart® technology, giving you true cook-and-hold versatility, dramatic merchandising appeal, and industry-leading efficiency in one compact, countertop footprint.
Why You’ll Love It
- Ventless, duct-free operation — integrated hood with 530 CFM filtration (grease + charcoal) lets you install almost anywhere.
- EcoSmart® efficiency — cooks a full load on only 8.3 kW, then automatically drops to a low-energy hold mode.
- High-volume output — seven angled spits handle up to twenty-eight 2.5 – 3 lb (1.1 – 1.4 kg) chickens or twenty-one 3.5 lb (1.6 kg) birds (98 lb / 44 kg max).
- Cook & Hold in one — electronic LED controller offers one- or two-stage cooking, 250–425 °F (121–218 °C) roasting, and automatic hold at 140–210 °F (60–99 °C).
- Showcase quality — single-pane low-e flat glass door, recessed lighting and incremental rotation jog present product brilliantly and stop rotation whenever the door opens.
- Built for the rush — heavy-gauge stainless-steel construction, solid rear panel to retain heat, and a ½ hp motor for dependable spit rotation.
- Clean-up made easy — removable spits, rotating disk, drip strips and a stainless drip pan with drain speed daily maintenance.
- Stack-ready flexibility — pair with another AR-7EVH or matching holding cabinet to multiply capacity without adding floorspace.
Included Accessories
- Seven (7) removable stainless-steel angled spits
- Two (2) stainless-steel angled drip strips
- One (1) 2"-deep stainless-steel drip pan with drain
- Six (6) recessed 20 W display lights
- 4" (102 mm) adjustable stainless-steel legs
Technical Specifications
| Model / Door | AR-7EVH | Single-pane flat glass, solid back |
|---|---|
| Construction | Heavy-gauge, non-magnetic stainless steel; sealed cooking chamber |
| Capacity | 21 × 3.5 lb (1.6 kg) or 28 × 2.5–3 lb (1.1–1.4 kg) chickens | 98 lb (44 kg) max |
| Temperature Range | Cook 250–425 °F (121–218 °C) | Hold 140–210 °F (60–99 °C) |
| External Dimensions (H × W × D) | 54" × 39-1/16" × 32-1/8" (1371 × 992 × 815 mm) |
| Ventless Airflow | 530 CFM (15 m³/min) integrated hood |
| Electrical Options |
208 V 1φ 60 Hz 40 A / 8.3 kW 240 V 1φ 60 Hz 38 A / 8.8 kW 208 V 3φ 60 Hz 33 A/phase / 8.3 kW 240 V 3φ 60 Hz 32 A/phase / 8.8 kW 380–415 V 3φ 50/60 Hz 24 A/phase / 8.8 kW |
| Clearances | 6" (152 mm) at top, back and both sides |
| Net / Ship Weight | 481 lb (218 kg) / 568 lb (258 kg) |
| Certifications | cULus UL EPH ANSI/NSF 4, CE, IPX3, TUV NORD, PCT, EAC |
| Warranty | 1-year parts & labor (see Alto-Shaam warranty for details) |
Need a different door swing, voltage or stacking configuration? Contact us for custom ordering assistance.
